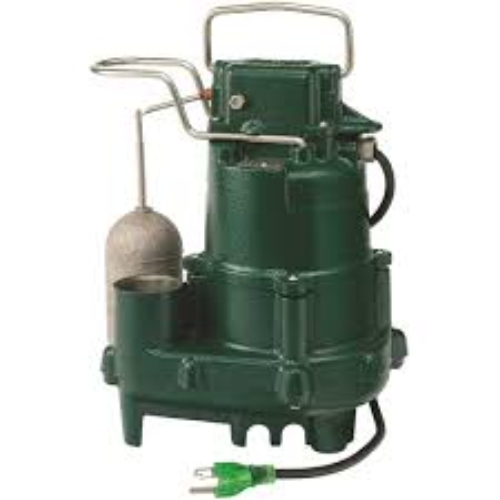

Zoeller® 73-0001
Model 73 is compact, lightweight and economical. Additionally it is a fully automatic sump pump with a built-in float switch. So, it can be installed in minutes and depended upon for years.
- Manufacturers: Zoeller Company
- Brand Name: Zoeller®
- CPEPN: 73-0001
- MPN: 73-0001
- UPC: 053514105488
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Total Availability:
-
Price:
- VOLTAGE: 1ø, 115V, 60Hz
- HORSEPOWER: 0.33 HP
- AMP DRAW (full load): 5.5
- MOTOR TYPE: Permanent Split Capacitor (PSC)
- RPM: 3400 RPM
- MAXIMUM HEAD: 18'
- MAXIMUM CAPACITY: 38 GPM
- SWITCH TYPE: Automatic
- SWITCH 'ON' LEVEL: 6-1/2" (16.5 cm)
- SWITCH 'OFF' LEVEL: 2-1/2" (6.3 cm)
- MINIMUM SUMP DIAMETER: 12"
- DISCHARGE PIPE SIZE: 1-1/2" NPT
- MAXIMUM SOLIDS HANDLING: 3/8" Spherical Solid
- IMPELLER TYPE: Engineered Plastic, Non-Clogging Vortex
- CORD LENGTH: 9' Standard Type UL Listed with 3-Prong Plug
- BODY CONSTRUCTION: Engineered Plastic
- MAXIMUM OPERATING TEMPERATURE: 104°F (40C)
| Type | : | Automatic, Permanent Split Capacitor |
| Series | : | Aqua-Mate™, Series 72 |
| Flow Rate | : | 38 gpm |
| Outlet Size | : | 1-1/2 Inch NPT |
| Maximum Head | : | 18 ft |
| Speed | : | 3450 Rpm |
| Power Rating | : | 1/3 hp |
| Voltage Rating | : | 115 V, 1 Phase |
| Amperage Rating | : | 3.1 A |
| Frequency Rating | : | 60 Hz |
| Cord Size | : | 9 ft |
| Temperature Rating | : | 110 deg F |
| Material | : | Steel |
| Dimensions | : | 11-13/16 Inch H |
| Warranty | : | 2 Year |
Specification Sheet
